FR-S / BRZ / GT86 HD Rear End Links

The Racer X Fabrication HD Rear End Links for the 2013-2020 Scion FR-S / Subaru BRZ / Toyota GT86 are designed to increase handling, response, and feedback by eliminating the OEM rubber bushings. Featuring a significantly thicker CNC machined 6061-T6 aluminum body compared to our previous hex stock design, these end links deliver a substantial increase in rigidity and durability.

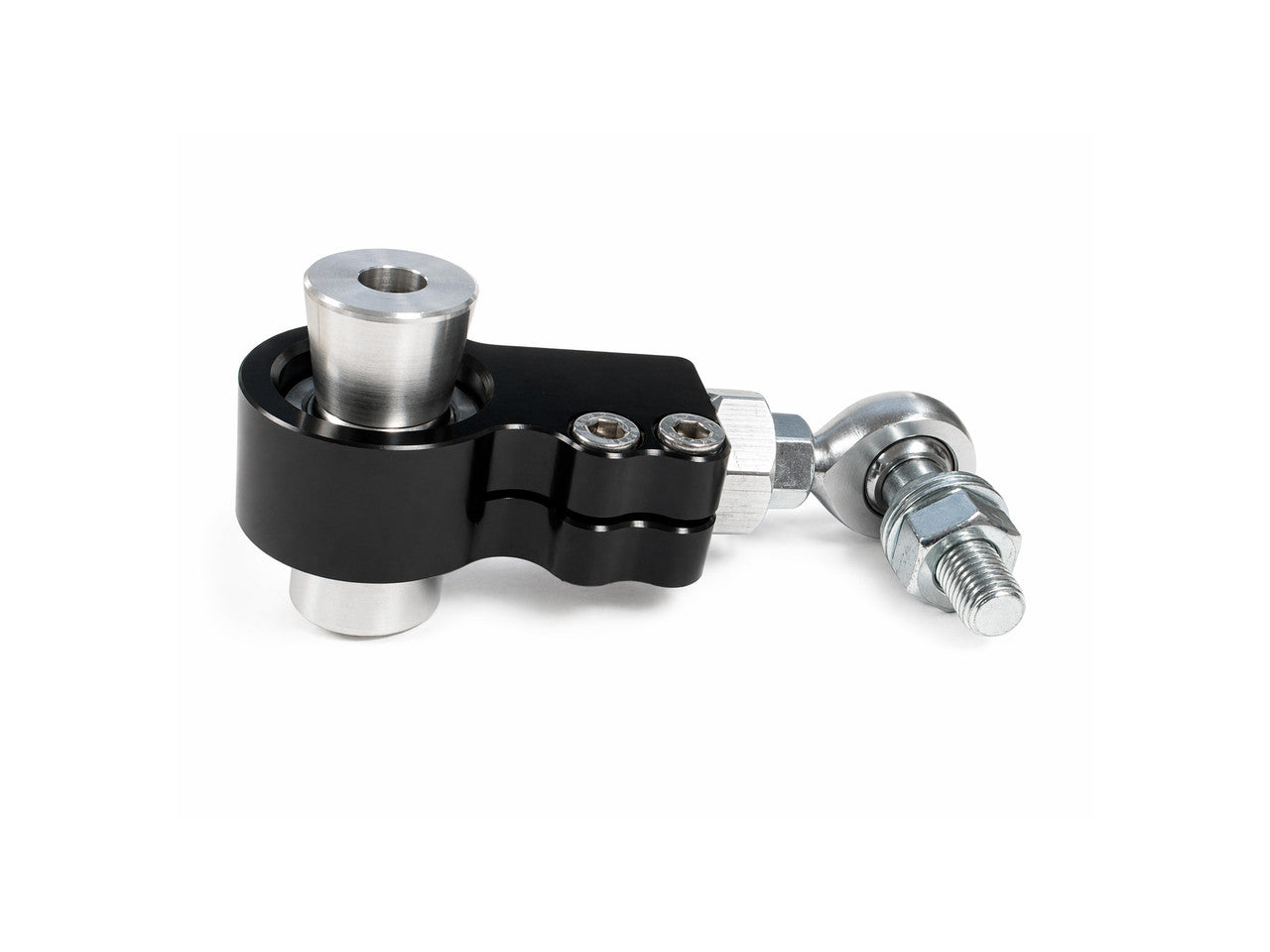

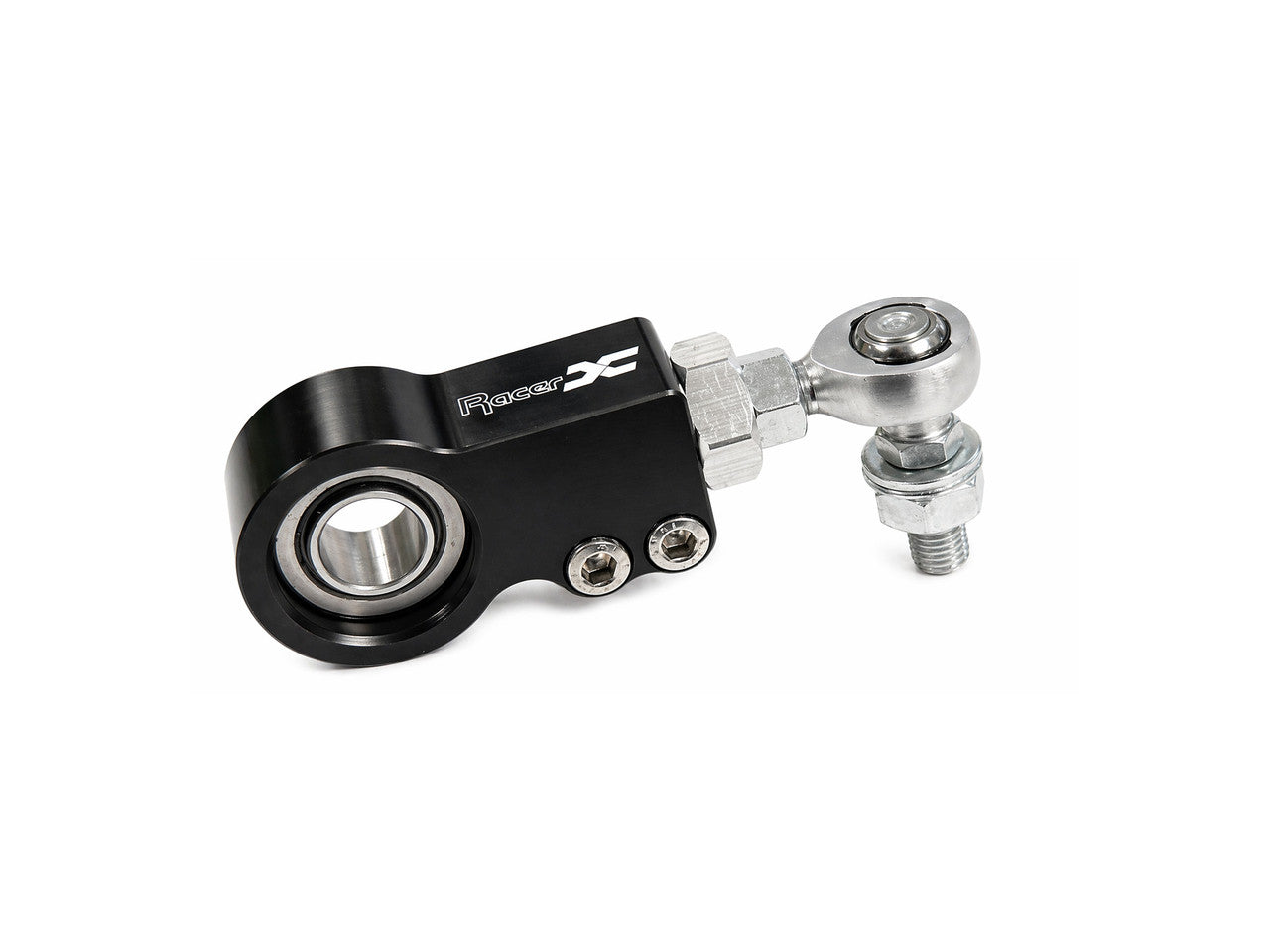

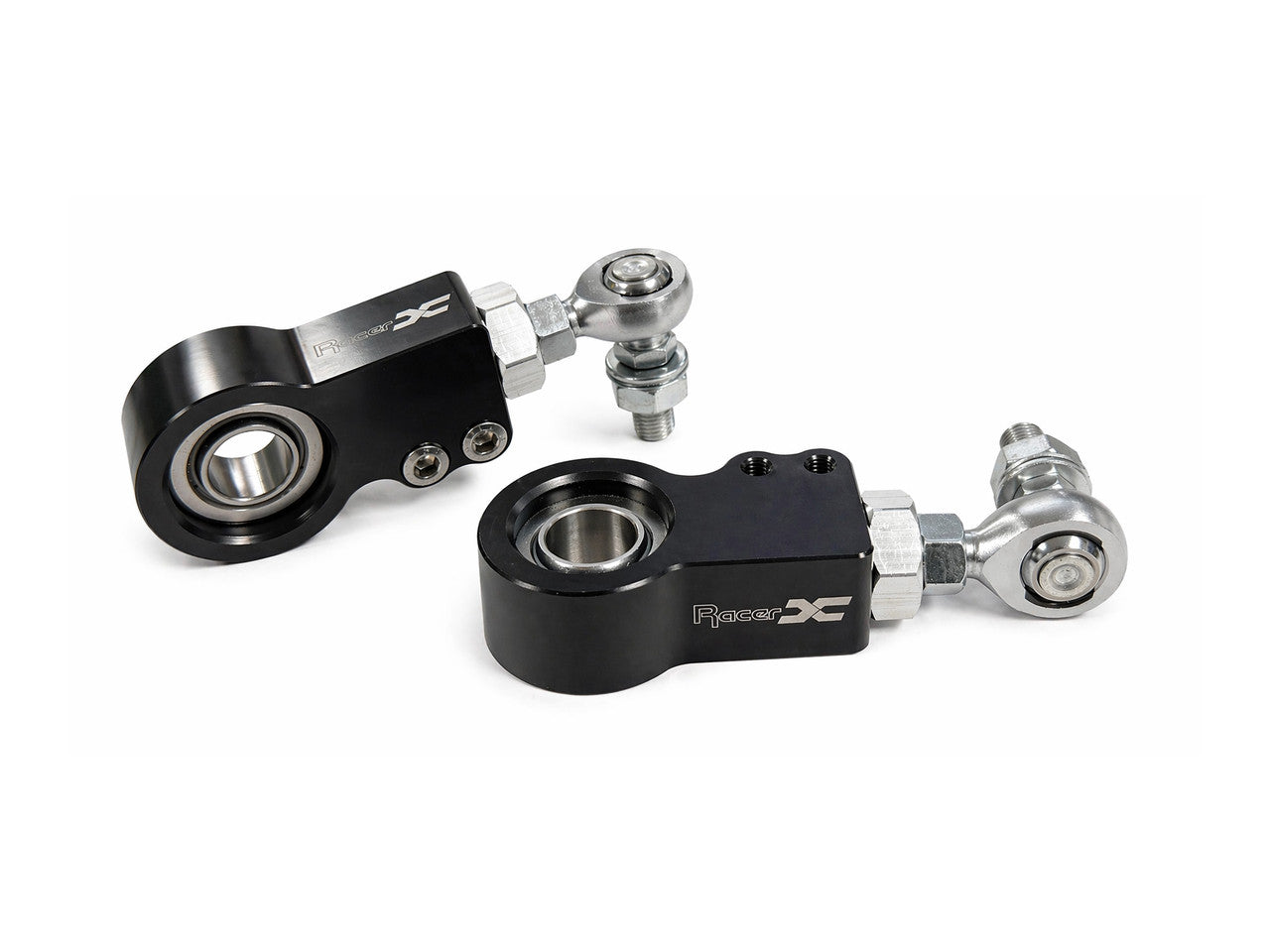

Each end link features a large spherical bearing on one end and a studded heim joint on the other, with a double adjuster design that allows for easy length adjustment. The pinch bolt design locks the threaded adjuster securely in place. We tested the completed assembly on our in-house universal testing machine to an axial loading of over 8,000 lbs of force — far beyond any sway bar force that can be induced. The completed assembly is anodized black with zinc plated hardware.

Compatible with OEM and aftermarket sway bars.
